Features and Benefits

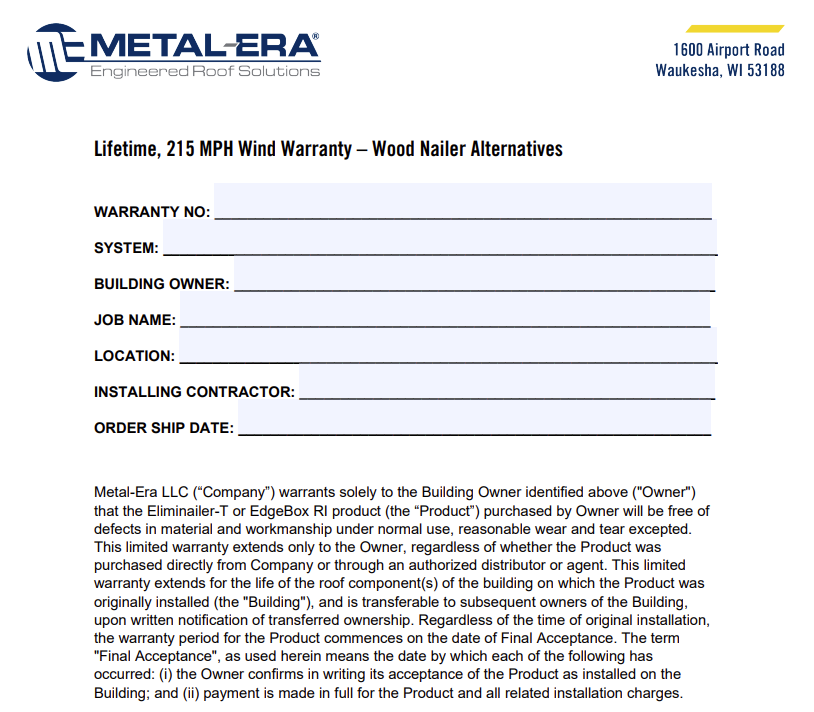

Warranty This high performance nailer alternative comes with a Lifetime, 215 MPH Wind Warranty. It covers replacement or repair of any portion of the system that has failed due to a defect in Metal-Era supplied materials. The warranty covers the product for the lifetime of the roof on which it was originally installed.
Testing
  • Tested per ANSI/SPRI/FM 4435/ES-1 Standard to comply with the International Building Code.
  • Factory Mutual approved for wind uplift protection.
  • Miami-Dade Approved (No. 21-0511.09 12/11/23) to comply with the “High Velocity Hurricane Zone of the Florida Building Code.”
Also Included All fasteners are included and will arrive to the job site with the product.
Available Materials EdgeBox RI is available in 20 ga. galvanized steel with or without a reinforcing spine. Spines are provided in either 16 or 20 ga. depending on the final product size.*

Material Height (in) Width (in)
20 Ga. Galvanized Steel Box 1.25 to 6 3.5 to 6
20 Ga. Galvanized Box w/ 20 Ga. Spine 6.25 to 12 6.25 to 12
20 Ga. Galvanized Box w/ 16 Ga. Spine 12.25 to 16 12.25 to 16

* Tested/Approvals up to 5.5" Width and 4.5" Height
Efficient Design
  • Designed to replace traditional wood nailers on any type of commercial building.
  • Provided in 12 ft. lengths for faster installation.
  • Provides a retainer for rigid insulation.
  • Maintains high R-value desired to prevent thermal loss from system.
  • Includes pre-punched holes and supplied with corrosion-resistant fasteners for proper attachment.
