The Importance of ANSI/SPRI/FM 4435/ES-1

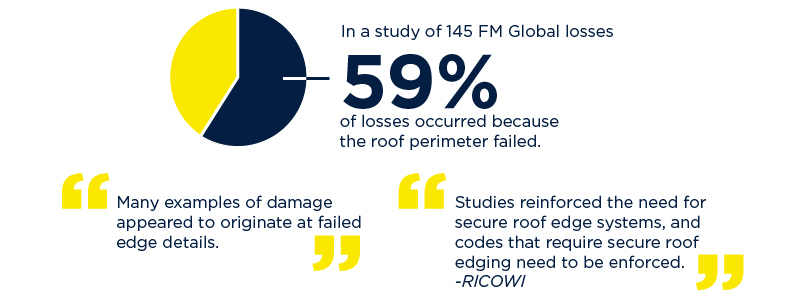

Why is Coping and Fascia Important?

3% of the total project cost, stronger edge metal is the single most cost-effective enhancement for wind uplift on a commercial roof.


Source: FM Approved Product News Vol. 21 No. 2 2005
Source: ANSI/SPRI/FM 4435/ES-1 Wind Design Standard for Edge Systems Used with Low Slope Roofing Systems.

What is ANSI/SPRI/FM 4435/ES-1?

• ANSI/SPRI/FM 4435/ES-1 is a test standard developed to determine an edge metal system’s resistance to wind pressure.

• Establishes minimum acceptable criteria for edge metal performance against wind events.

• Based on ASCE-7 design loads for buildings & other structures.

• Pressures are reported as Horizontal (outward) and Vertical (upward) pounds/sq foot (psf).

4 Factors Used to Determine Necessary Pressure

1. Building Exposure (What is the geographical surroundings of the building?)

2. Building Category (How is the building going to be used/occupied?)

3. Building Height

4. Building Location

Click here for the ANSI/SPRI/FM 4435/ES-1 Calculator!​

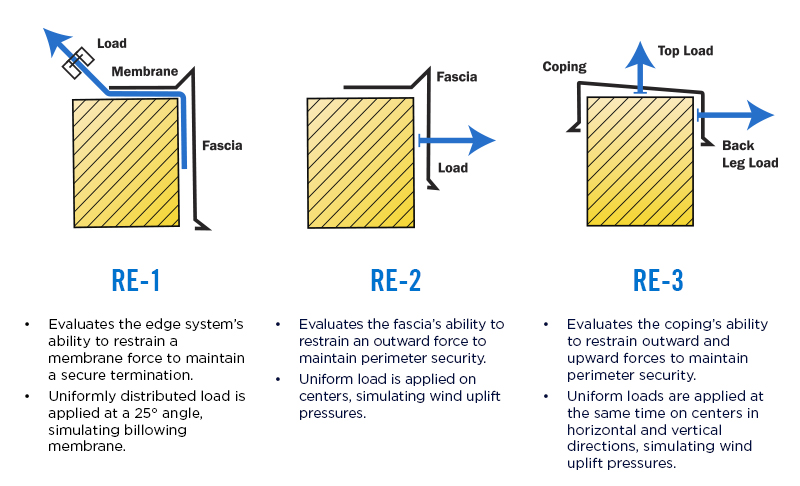

3 Test Methods Depending on the Edge Profile Being Used
